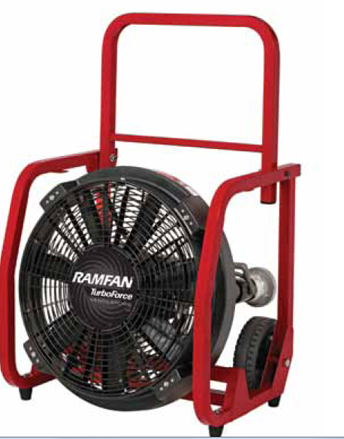

WF540水驱动排烟机(美国RAMFAN)
Water Powered Turbo Blowers
First Choice of Naval Forces Worldwide
RAMFAN Water Powered Turbo Blowers are used by Naval Forces worldwide for smoke removal,ventilation and cooling during combat operations.
21”/54cm | WF540 Solution to High Rise
Underground and Warehouse Ventilation
特点
水力驱动,本质安全
6片铝铸涡轮叶片,叶轮动平横精度高
本质安全型的正压式风机
大容量排风机,适用于大型建筑
进水控制阀门,可直接控制风机排烟量
循环水出口(闭合水管道)以持续水供应
抗腐蚀涡轮,可在盐咸水质中使用
ONEstep 定位调节器,快速方便设置
32mm粉末涂层钢架及适合所有地形的充气胎
全宽度可伸缩手柄,方便直立、推拉操作
手动ON/OFF阀门开关
Water powered, intrinsically safe
6-blade polymer TurboForce™ impeller for increased shatter
resistance and enhanced PPV performance.
Water control valve provides direct control of airflow at blower
Outlet for water recycling (closed circuit) to conserve water supply
Wide range tilt adjustment
Powder coated steel frame with full-width folding handle
Equipped with PowerStream™ to support greater setback distances
reducing the noise level inside the building and allows the entry/exit
to keep clear of obstructions for advancing firefighters.
Integral misting system
Optional Accessories: Many water connection fittings and
ducting configurations available. Call for details.
技术参数:
马达:5.2Hp@150psi
6kW@1.75MPa
重 量:34kg
体 积:650/630/530 mm
压力/流量:
额定: 0.8MPa/471lpm 116psi/124gpm
最大: 250psi/70gpm 250psi/221gpm
涡轮:
22,443cfm@150psi
38,154m3/hr@0.8MPa
